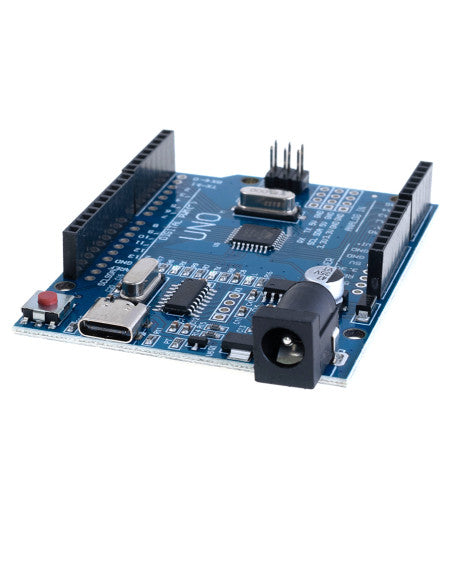

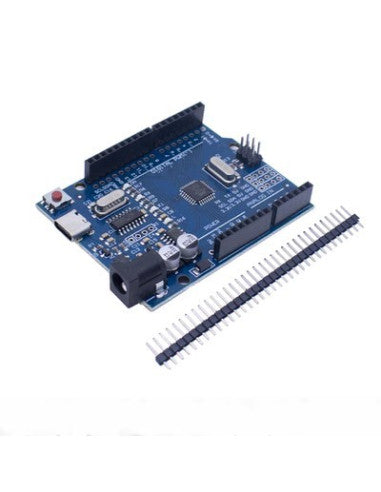

UNO R3 Mega328P CH340 Development Board (TYPE C)

Name: UNO R3 Mega328P CH340 Development Board (TYPE C)
Brand: ProtoParts
Price: 131.98 ZAR
Availability: InStock

R 131.98 ZAR

The UNO R3 Mega328P CH340 Development Board (TYPE C) is a versatile microcontroller platform designed for professional prototyping and embedded system projects. Featuring the robust ATmega328P chipset, it offers efficient processing and reliable performance. The integrated CH340 USB-to-serial converter ensures seamless communication via a modern TYPE C interface, enhancing connectivity and ease of programming. This board supports extensive development flexibility with multiple digital and analog I/O pins, making it ideal for precise control, sensor integration, and embedded applications requiring expert-level reliability and functionality.

PRODUCT INFORMATION

Specifications

Spec	Value
Microcontroller	ATmega328P
Operating Voltage	5V
Input Voltage (recommended)	7–12V
Input Voltage (limit)	6–20V
Digital I/O Pins	14 (of which 6 provide PWM output)
PWM Digital I/O Pins	6
Analog Input Pins	6
DC Current per I/O Pin	20 mA
DC Current for 3.3V Pin	50 mA
Flash Memory	32 KB (ATmega328P), of which 0.5 KB used by bootloader
SRAM	2 KB (ATmega328P)
EEPROM	1 KB (ATmega328P)
Clock Speed	16 MHz
LED_BUILTIN	13

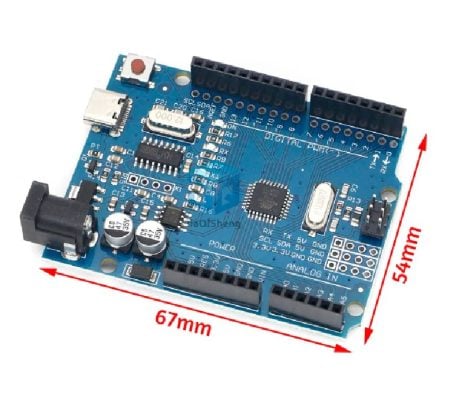

Length	68.6 mm
Width	53.4 mm
Weight	25 g
Adapter	Type C

Code Snippet

// Blink - Arduino Official Example
// Toggles the built-in LED on and off every second.

// the setup function runs once when you press power or reset
void setup() {
  // initialize digital pin LED_BUILTIN as an output.
  pinMode(LED_BUILTIN, OUTPUT);
}

// the loop function runs over and over again forever
void loop() {
  digitalWrite(LED_BUILTIN, HIGH);   // turn the LED on (HIGH is the voltage level)
  delay(1000);                       // wait for a second
  digitalWrite(LED_BUILTIN, LOW);    // turn the LED off by making the voltage LOW
  delay(1000);                       // wait for a second
}
