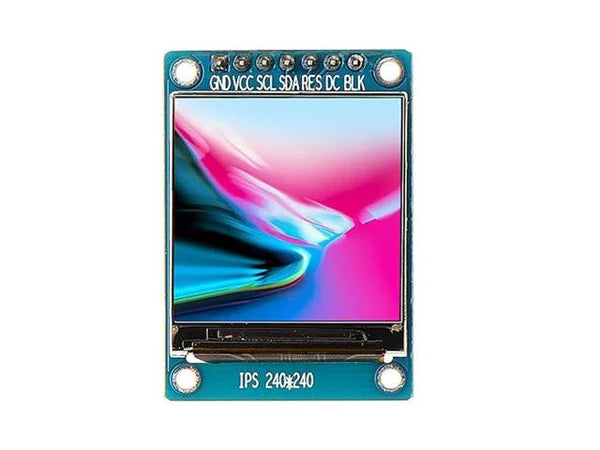

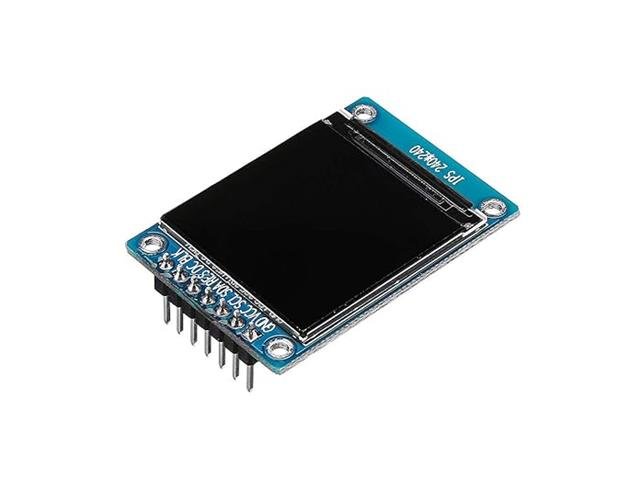

ST7789 1.3 Inch TFT LCD Module
R 110.98 ZAR
The ST7789 1.3 Inch TFT LCD Module offers high-quality color display with a 240x240 resolution, ideal for compact embedded systems. Featuring a versatile SPI interface, it ensures fast data transfer with low power consumption. Its compact size and vivid display make it perfect for advanced projects requiring clear visuals and efficient performance in a small form factor.
Pickup currently not available
PRODUCT INFORMATION
Specifications
| Spec | Value |
|---|---|
| SIZE | 1.3inch |
| Display Mode | Normally black IPS |
| Display Format | Graphic 240RGB*240 Dot-matrix |
| Input Data | SPI interface |
| Drive IC | ST7789VW |
| Dimensional outline | 27.78(W)*39.22(H)*3.0±0.1(T)mm |
| Resolution | 240RGB*240 Dots |
| LCD Active area | 23.4(W)*23.4(H) |
| Dot pitch | 0.0975(H) x 0.0975(V) mm |
| Viewing Direction | All View |
| Operating Temperature | -20～70°C |

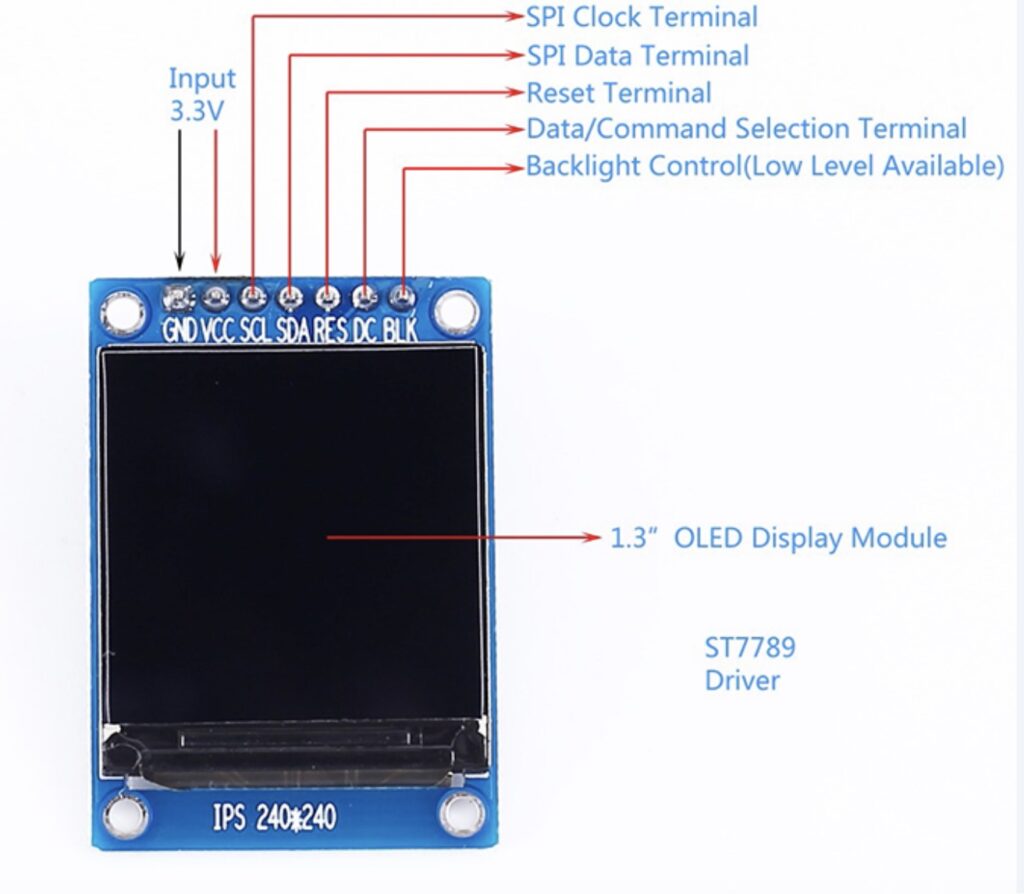

| Pin 1 | GND (Ground) |
| Pin 2 | VCC (Power 3.3V) |
| Pin 3 | SCL (Serial clock pin) |
| Pin 4 | SDA (Serial data input) |
| Pin 5 | RES (LCM Reset pin. Low = reset. Keep high for normal operation) |
| Pin 6 | DC (Data/Command Control) |
